* The Audio Technica AT2020 requires 48V DC phantom power. which may be provided by a mixer or console
Overview
The Audio Technica AT2020 low-mass diaphragm that is engineered for extended frequency response and superior transient response. With rugged construction for durable performance. the microphone offers a wide dynamic range and handles high SPLs with ease.
Features
- High SPL handling and wide dynamic range provide unmatched versatility
- Relatively low self-noise - perfectly suited for sophisticated digital recording equipment
- Low-mass diaphragm provides extended frequency response and superior transient response
- Cardioid polar pattern reduces pickup of sounds from the sides and rear. improving isolation of desired sound source
- Pivoting. threaded stand mount attaches securely for easy and precise placement of the microphone
- Requires 48V phantom power
Specification
Element: Fixed-charge back plate. permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 20-20.000 Hz
Open Circuit Connectivity: –37 dB (14.1 mV) re 1V at 1 Pa
Impedance: 100 ohms
Maximum Input Sound Level: 144 dB SPL. 1 kHz at 1% T.H.D.
Noise: 20 dB SPL
Dynamic Range (typical): 124 dB. 1 kHz at Max SPL
S/N Ratio: 74 dB. 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC. 2 mA typical
Weight: 345g
Dimension: 162mm long. 52.0mm maximum body diameter
Output Connector: Integral 3-pin XLRM-type

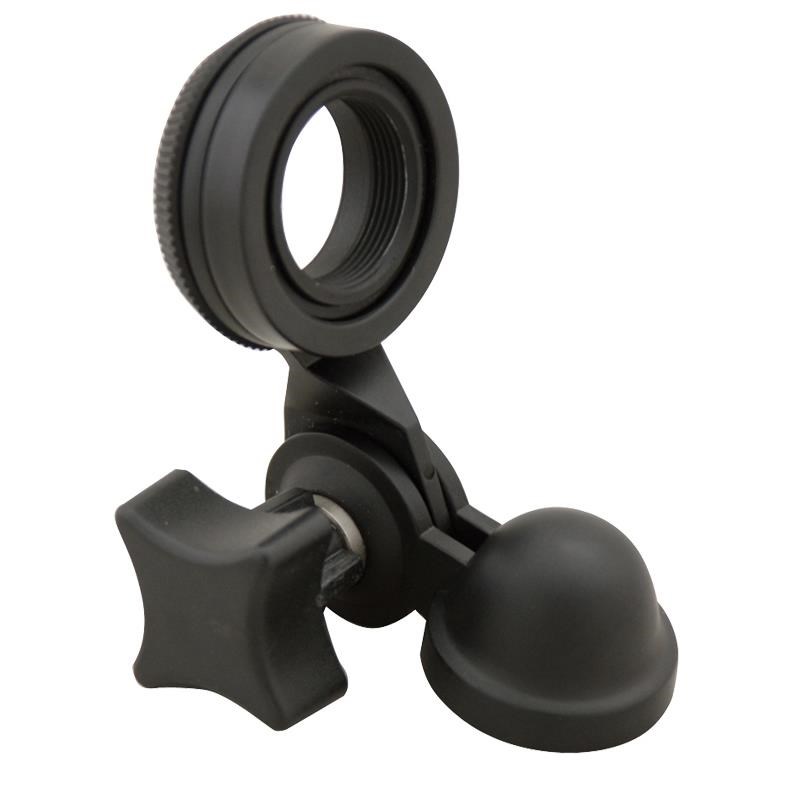

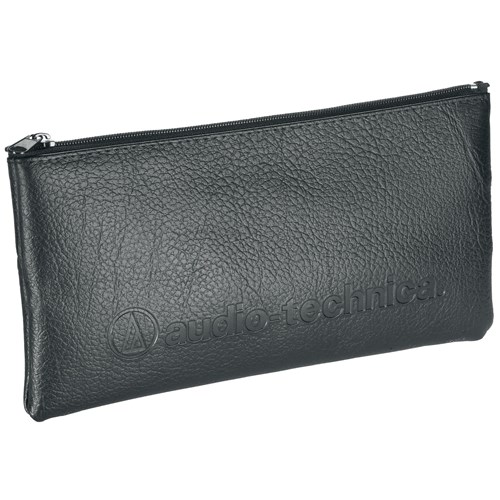

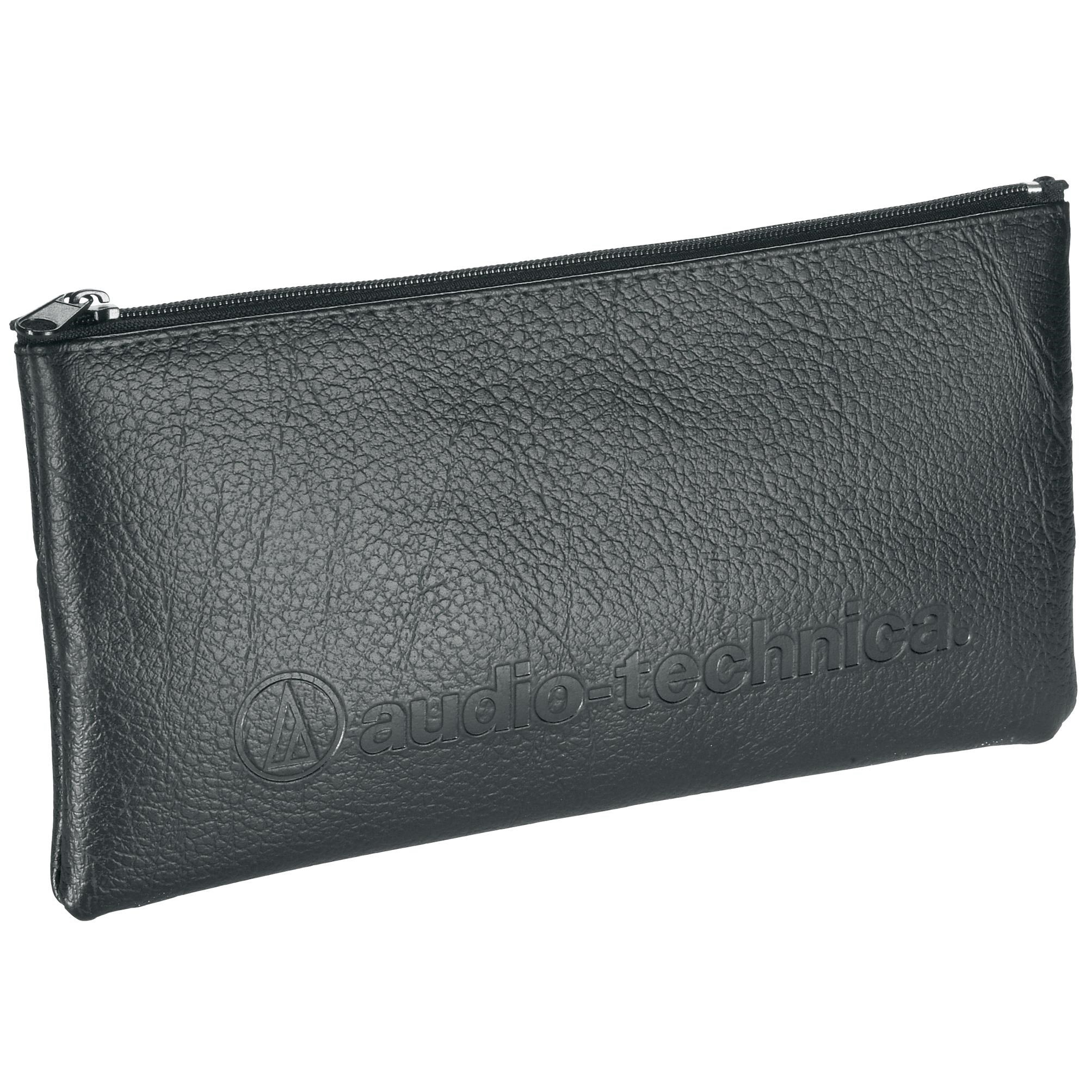

Accessories included: Stand mount for 5/8'-27 threaded stands; 5/8'-27 to 3/8'-16 threaded adapter; soft protective pouch
