Overview

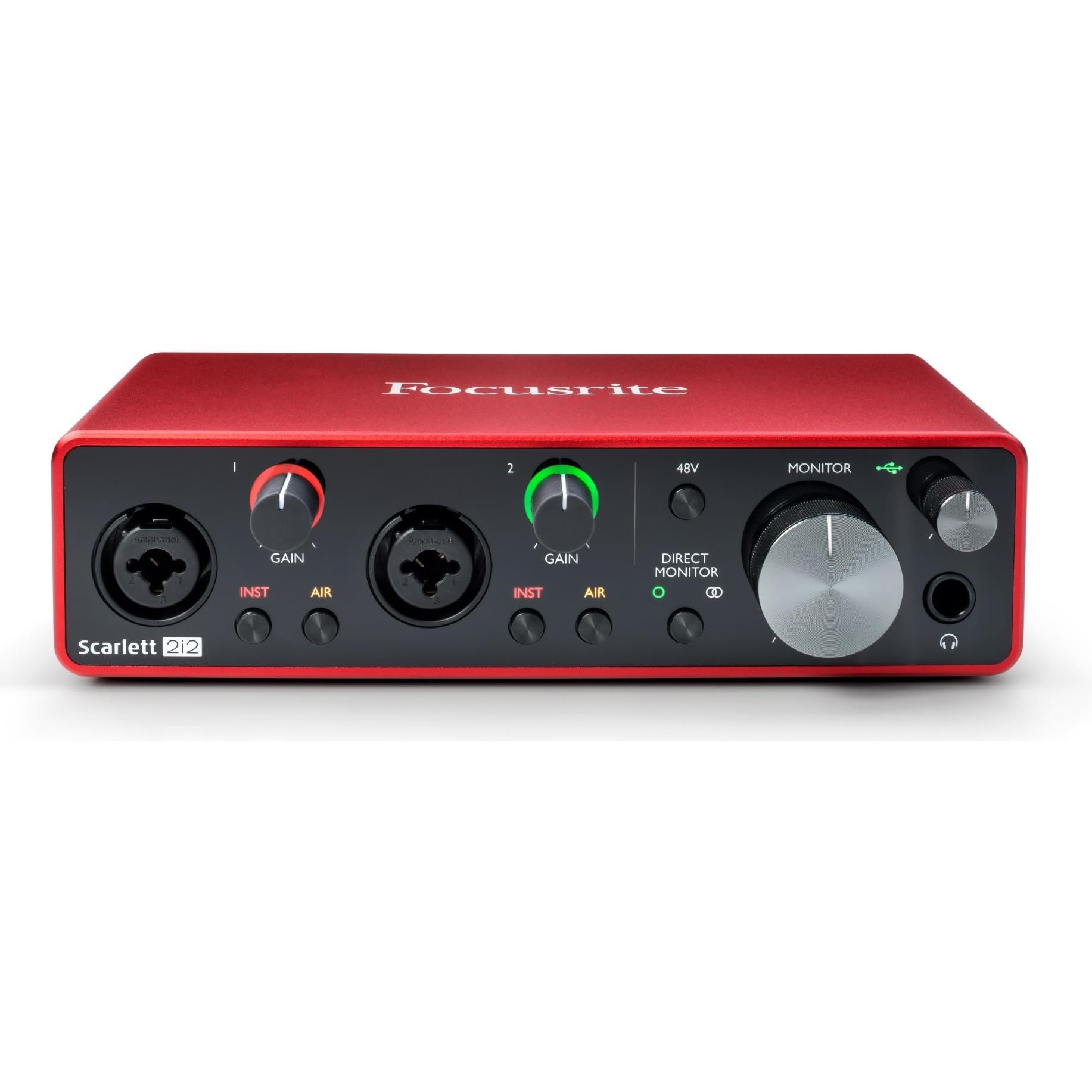

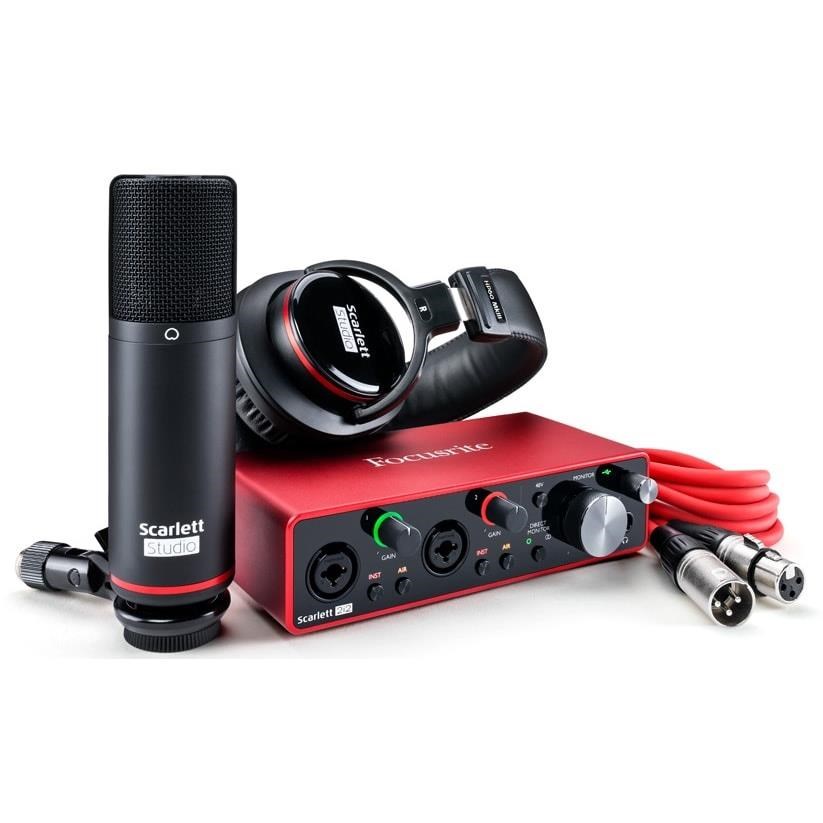

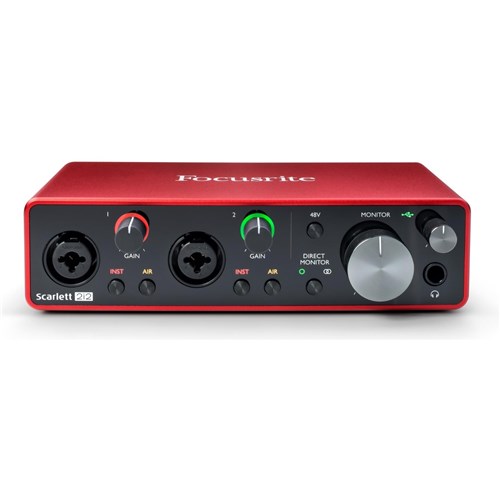

The Focusrite Scarlett 2i2 Studio is everything you need to create studio-quality recordings at home.
Specifications
Audio Interface Specifications:
Computer Connectivity: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 2 x 2
Number of Preamps: 2
Phantom Power: Yes
A/D Resolution: Up to 24-bit/192kHz
Supported Sample Rates: 44.1kHz. 48kHz. 88.2kHz. 96kHz. 176.4kHz. 192kHz
Analog Inputs: 2 x XLR-1/4' combo (mic/line/Hi-Z)
Analog Outputs: 2 x 1/4' TRS
Headphones: 1 x 1/4'
USB: 1 x Type USB-C
Software: Ableton Live Lite. Pro Tools First Creative Pack. Red Plug-in Suite. Focusrite Collective access
OS Requirements - Mac: macOS 10.12 or later
OS Requirements - PC: Windows 10 v1809 or later
Bus Powered: Yes
Power Supply: USB bus powered
Microphone Input
Frequency Response: 20Hz - 20kHz ± 0.1dB
Dynamic Range: 111dB (A-weighted)
THD N: <0.0012%
Noise EIN: -128dB (A-weighted)
Maximum Input Level: 9dBu (at minimum gain)
Gain Range: 56dB
Impedance: 3kO
Line Inputs
Frequency Response: 20Hz - 20kHz ± 0.1dB
Dynamic Range: 110.5dB (A-weighted)
THD N: <0.002%
Maximum Input Level: 22dBu (at minimum gain)
Gain Range: 56dB
Impedance: 60kO
Instrument Inputs
Frequency Response: 20Hz - 20kHz ± 0.1dB
Dynamic Range: 110dB (A-weighted)
THD N: <0.03%
Maximum Input Level: 12.5dBu (at minimum gain)
Gain Range: 56dB
Impedance: 1.5MO
Line/Monitor Outputs
Dynamic Range (Line Outputs): 108dB
THD N: <0.002%
Maximum Output Level (0 dBFS): 15.5dBu
Impedance: 430O
Headphone Output
Dynamic Range: 104dB (A-weighted)
THD N: <0.002%
Maximum Output Level: 7dBu
Impedance: <1O
