Overview
Start creating great recordings with the Focusrite Solo Studio pack.
Specifications
Computer Connectivity: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 2 x 2
Number of Preamps: 1 x mic. 1 x instrument
Phantom Power: Yes
A/D Resolution: Up to 24-bit/192kHz
Supported Sample Rates: 44.1kHz. 48kHz. 88.2kHz. 96kHz. 176.4kHz. 192kHz
Analog Inputs: 1 x XLR (mic). 1 x 1/4' (Hi-Z)
Analog Outputs: 2 x 1/4' TRS
Headphones: 1 x 1/4'
USB: 1 x Type USB-C
Software: Ableton Live Lite. Pro Tools First Creative Pack. Red Plug-in Suite. Focusrite Collective access
OS Requirements - Mac: macOS 10.12 or later
OS Requirements - PC: Windows 10 v1809 or later
Bus Powered: Yes
Power Supply: USB bus powered
Supported Sample Rates
44.1kHz. 48kHz. 88.2kHz. 96kHz. 176.4kHz. 192kHz
Microphone Inputs
Frequency Response: 20Hz - 20kHz ± 0.1dB
Dynamic Range: 111dB (A-weighted)
THD N: <0.0012%
Noise EIN: -128dBu (A-weighted)
Maximum Input Level: 9dBu (at minimum gain)
Gain Range: 56dB
Impedance: 3kO
Line Inputs
Frequency Response: 20Hz - 20kHz ± 0.1dB
Dynamic Range: 110.5dB (A-weighted)
THD N: <0.002%
Maximum Input Level: 22dBu (at minimum gain)
Gain Range: 56dB
Impedance: 60kO
Instruments Inputs
Frequency Response: 20Hz - 20kHz ± 0.1dB
Dynamic Range: 110dB (A-weighted)
THD N: <0.03%
Maximum Input Level: 12.5dBu (at minimum gain)
Gain Range: 56dB
Impedance: 1.5MO
Line/Monitor Inputs
Dynamic Range (Line Outputs): 108dB
THD N: <0.002%
Maximum Output Level (0 dBFS): 15.5dBu
Impedance: 430O
Headphone Outputs
Dynamic Range: 104dB (A-weighted)
THD N: <0.002%
Maximum Output Level: 7dBu
Impedance: <1O

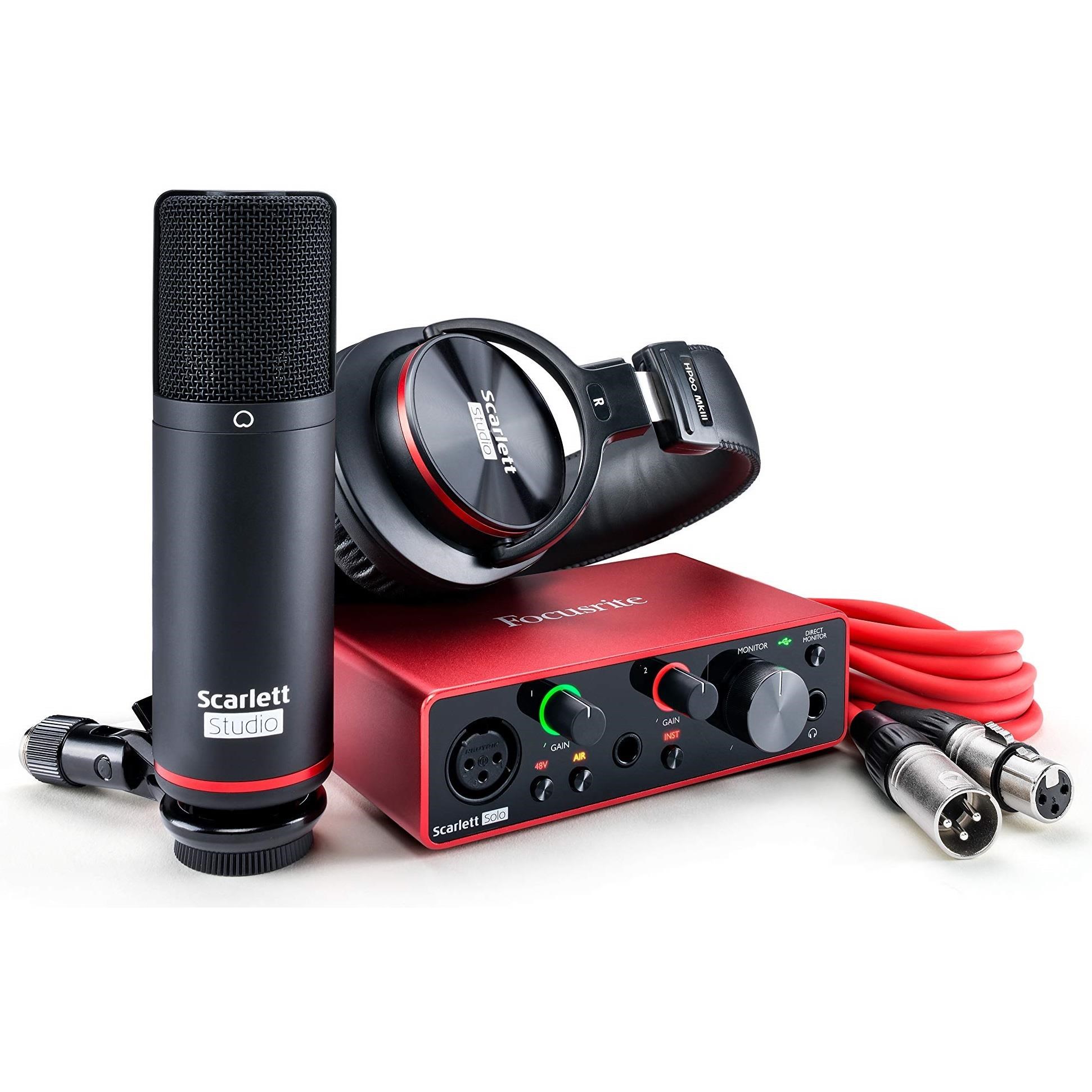

In the Box
Focusrite SOLO Gen3
Focusrite CM25 Mk2 Microphone
Focusrite HP60 Mk2 Headphones
XLR
USB
