Streamline your setup and optimize your production with the Razer Audio Mixer an easy-to-use. all-in-one analog mixer for broadcasting and streaming. With total control over your mix and studio-like quality. professional audio has never sounded this good or felt this simple.
Key Features
Analog Audio Mixer
For Quick. On-the-fly Adjustments. Forget fiddly software and adjust audio effortlessly with a mixer that’s completely hardware-controlled once configured. Includes multiple input sources for analog and digital connections.
4-channel Interface with Mute Buttons
To Control All Your Audio Levels. With 1 direct line out for your mic and 3 other channels assigned via Razer Synapse. get the perfect mix between mic. game. music/chat. and system volumes as you tweak or mute them individually.
XLR Input with Preamp
For Crisp. Clear Voice Quality. The mixer supports XLR mics and can boost their output thanks to an ultra-clean low-noise-gain preamp with adjustable gain from -12dB to 39.7dB at 0.75dB per step.
Built-in Voice Settings and Audio Processing
For Greater Customization and Optimization. Tweak your voice using hardware-controlled EQ. compressor. and noise gate settings as the mixer handles all of your audio—freeing up resources on your rig for other tasks.
Plug and Play
For Fuss-free Setup. Get the mixer up and running in minutes simply by plugging in your mic. hooking it up to your PC. and assigning your desired programs to each channel via Razer Synapse.
Powered by Razer Chroma™ RGB??
For Greater Personalization and Interaction. Sync the mixer to your Razer Chroma ecosystem. watch it light up to indicate volume levels or when it’s muted. and have it interact with your audience via our Streamer Companion App.
TECH SPECS
Mixer T2 Overview
• 4 channels for audio mixing.
• Toggle Mute buttons for 4 physical audio channels.
• Microphone mute (HOLD) and Bleep Button
• Audio Connections like XLR Input. Line Out/Line In. Optical Input. Headphone
Output and Microphone Input.
• Audio Effects like EQ. Compressor. Noise Gate. Echo. Reverb. Voice Changer
• Customizable Razer Chroma Lighting
• Razer Synapse controlled audio channel assignment.

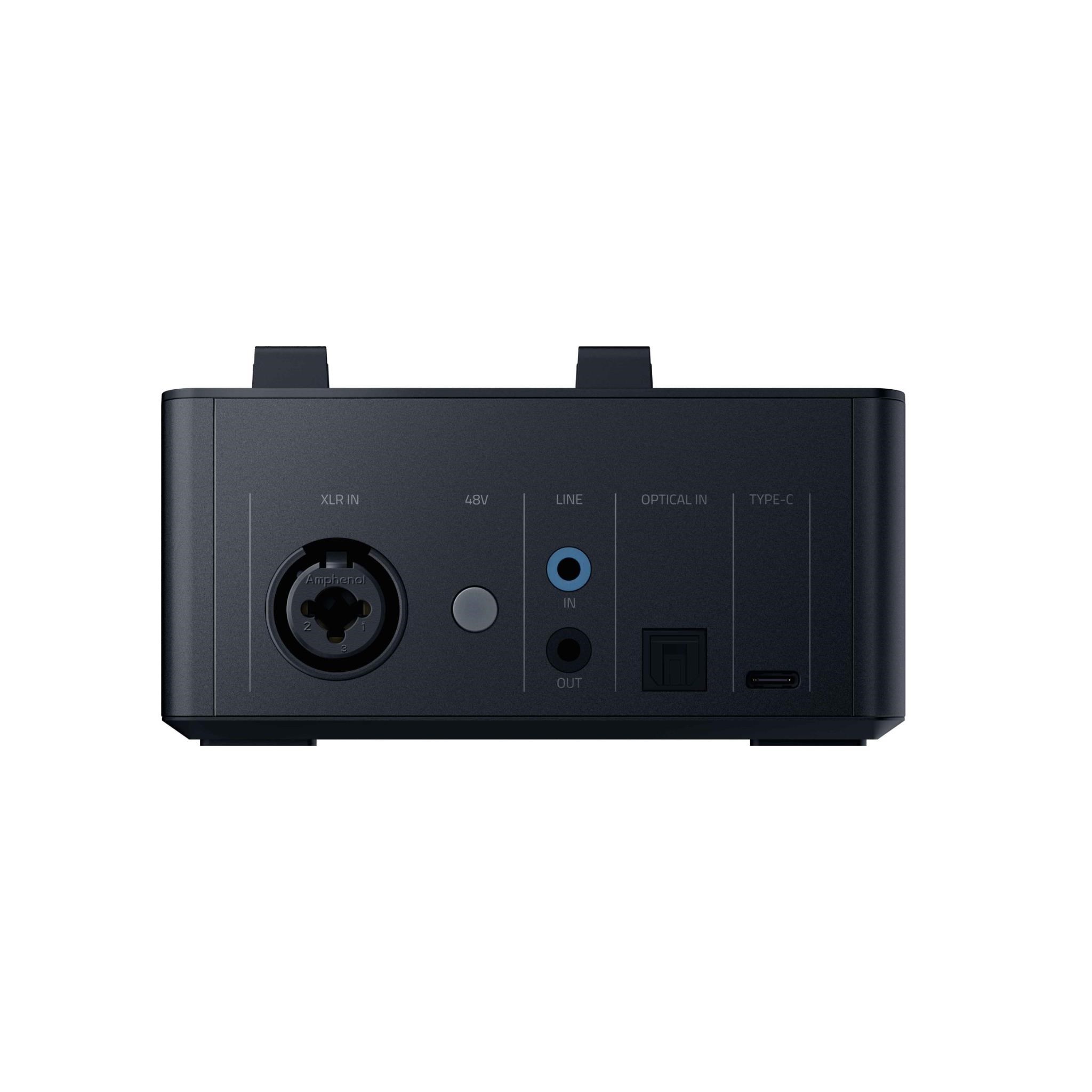

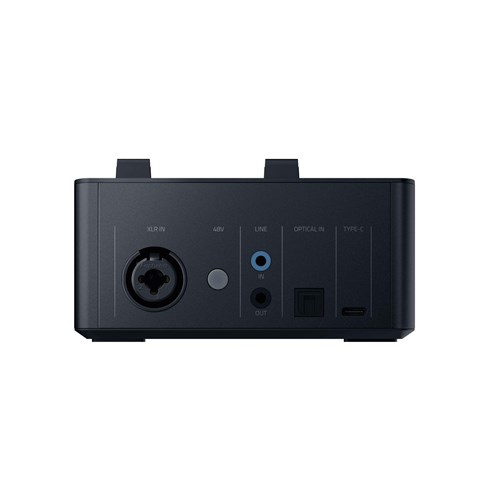

Analog Connections
• Microphone in from one of the following sources:
• XLR balanced Jack
• 6.35mm TRS balanced Jack
• 3.5mm TS unbalanced Jack
• 1 x 3.5mm TRS Line In
• 1 x 3.5mm TRS Line Out
• 1 x 3.5mm TRS Headphone Out
Digital Connections
• 1 x USB2.0. Type C.
• 1 x Optical Toslink
Hardware User Control
• 4 x Channel Volume Slide Faders
• 4 x Channel Mute Buttons
• 1 x Microphone Mute Button
• 1 x Bleep Button
• 1 x 48V Phantom Power Button
Software User Control via Razer Synapse
• Channel Routing Control
• Microphone Setup
• Chroma Lighting Control
• Audio Effects Control
• Firmware Update
Audio Features
• A/D and D/A Conversion: 24 bits @ 48kHz
• Effects: Noise Gate. Compressor. EQ. Echo Reverb. Presets. Voice Changer. Key Shifter. Vocal Fading.
• Frequency Response: 10Hz to 20kHz
• Dynamic Range: >110dB
• S/N Ratio: >100dB
• THD N: <-90dB
• Channel Crosstalk: <-90dB
Chroma Lighting
• ARGB
• Razer chroma RGB for all buttons (except for 48V Phantom Power Button). channel number and volume level customizable in Razer Synapse.
Display (LED Indicators)
1. 4 x Channel Volume level (11 LED Levels from 0 to 100% for each Channel)
2. 4 x Channel Mute button
3. 1 x Microphone Mute
4. 1 x Bleep Button
5. Razer Wordmark Logo
Power Supply/Voltage
• Power Input: USB Power
• Power Consumption: 5V / 500mA
Mechanical Specification
• Product Dimension = 155 x 115 x 55.3mm
• Product Weight = 468g
• Product Weight Cable = 526g
System Requirement
• Microsoft Windows 10
Package Contents
• 1 x Razer Audio Mixer
• 1 x USB2.0 Type A to C cable
• 1 x Important Product Information Guide
