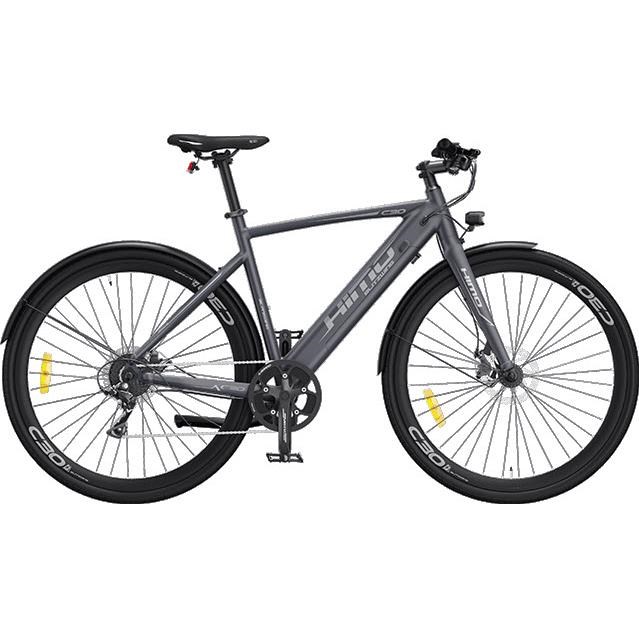

Himo Electric Bike C30R (Grey)

Himo Electric Bike C30R (Grey)

5114254
587000
Retail Grade Product
PLEASE NOTE: Things to know before you ride

Ride with caution and always wear a helmet and protective gear. Each state and territory in Australia have different rules and regulations for using your product, including where you can legally use such products and if you need to register them with your state’s road traffic authority. Any information provided by JB Hi-Fi is general in nature only and may not take account of your specific circumstances. It is the responsibility of each user to check their local laws before riding.
Login to view your pricing
  • Product Details
  • Notes 4
  • Technical Specifications
  • Warranty
  • Additional Documents
  • Promotion T&Cs
Description

Please Note: Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-scooters. e-bikes and e-boards (including where e-scooters. e-bikes and e-boards can legally be used and whether e-scooters. e-bikes and e-boards need to be registered with the relevant road traffic authority).  Any user of this product must ensure that that they check and abide by their local by-laws and use responsibly.  Ride with caution and always wear a helmet and protective gear when riding your e-scooter. e-bike and e-board

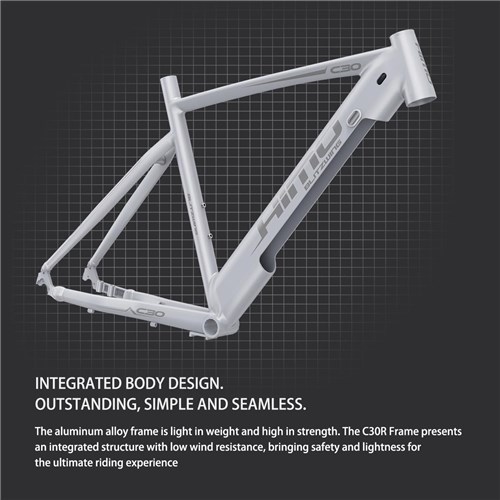

Integrated Body Design
The lightweight aluminium alloy frame is light in eight and high in strength.

High Energy Storage Lithium Battery Design
The whole vehicle uses Samsung 21700 batteries. which are small in size. large in capacity. light in weight and high in energy density.

Man-Machine Override System
High-definition colour LCD instrument. dot-matrix imaging technology. rich colours. high resolution. clear display under strong light. waterproof performance up to IPX7 and 5 electric assist modes.

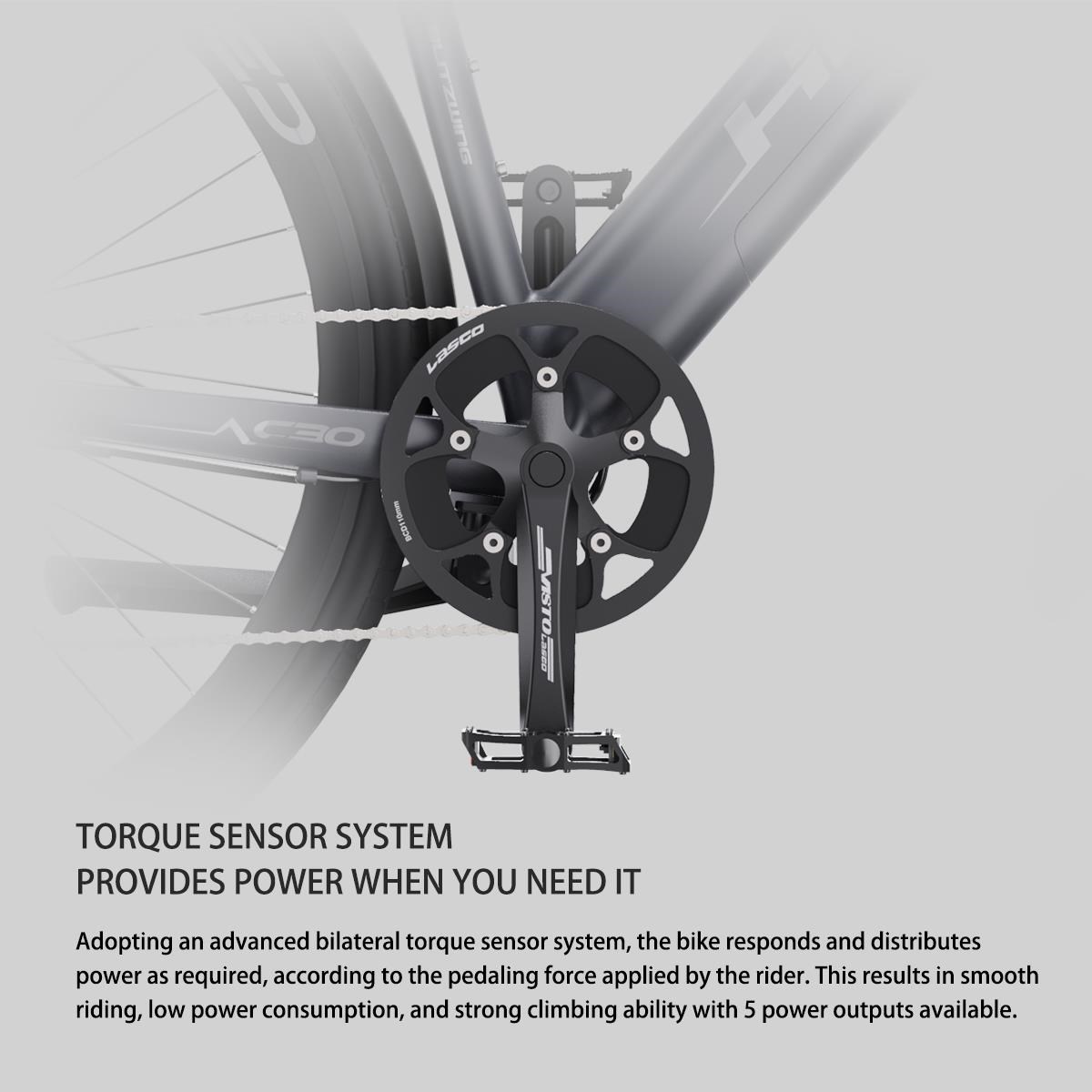

Torque Sensor System
Adopting an advanced bilateral torque sensor system. it can be sensitive to and distribute power output according to the riders pedalling force. smooth riding. low power consumption. strong climbing ability and provide riders with 5 power outputs.

Powerful High-Speed Motor
The high-speed inner rotor adopts high-end helical gear double-speed technology with strong power. high efficiency. small size. light weight. low noise without fear of climbing against the wind and always walking on the ground.

Key Features

Shimano 9 Speed transmission system

Torque system ultra-long battery life

Tektro Brake system

Lightweight aluminium alloy frame

Colour HD LCD meter

Waterproof performance up to IPX7 and 5 electric assist modes

Technical Specifications
Battery capacity (mAh) 9
Battery charge life 1500 charging-discharging circles
Battery nominal voltage 36
Braking distance (metres) 6
Braking method Disc
Brand HIMO
Charger input voltage 110
Charger output current (amps) 2
Charger output power (watts) 84
Charger output voltage 42
E-bike drive type Hub-drive motor
E-bike features Mountain bike
Frame material Aluminium alloy
IP rating IPX7
Max range approx (km) 80
Max weight bearing (kg) 100
Max. charging voltage 42
Motor max. power (watts) 250
Motor nominal power (watts) 250
Nominal energy (Wh) 345
On-road / Off-road Hybrid
Packaged Depth (mm) 745
Packaged Height (mm) 1400
Packaged Weight (kg) 24.5
Packaged Width (mm) 250
Product Depth (mm) 1015
Product Height (mm) 1740
Product Weight (kg) 18.5
Product Width (mm) 630
Recommended rider age 18 years and over
Recommended rider height (cm) 165-190
Rideables device type Electric bikes
Riding modes power assist
Time to full charge 5 hours
Top speed (km/h) 25
Tyre size (inches) 28
Water Resistant true
Colour Grey
Warranty
  • Manufacturers Warranty: 1 Year
