Overview

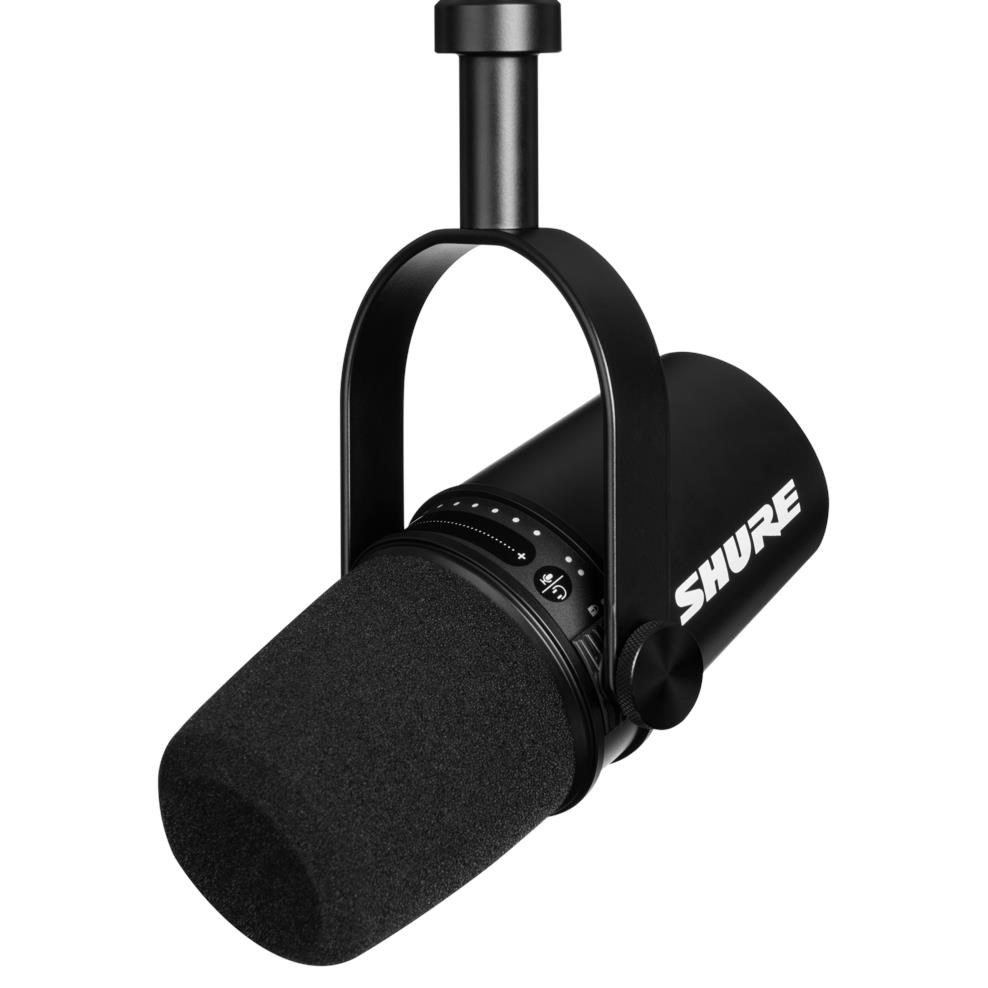

Step up your podcasting/streaming game with the Shure MV7 USB/XLR microphone. This is a broadcast style dynamic microphone that was inspired by the world famous Shure SM7B.
Key Features
- Work with XLR or USB connections
- All metal construction
- Unidirectional cardioid polar pattern which capture mostly what's in front and less room noise

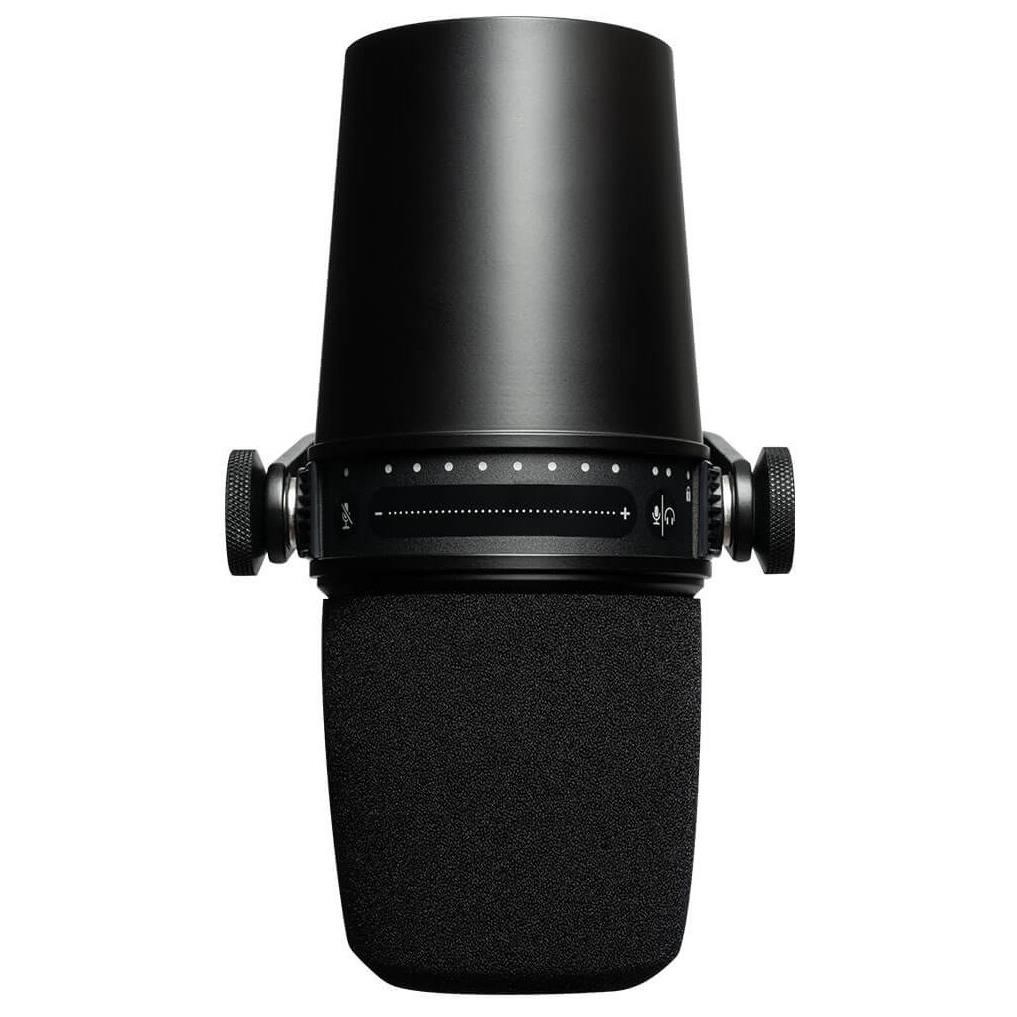

- Integrated touch panel interface to control mic gain. headphone volume. monitor mix and mute
- upto 48kHz / 24bit audio capture

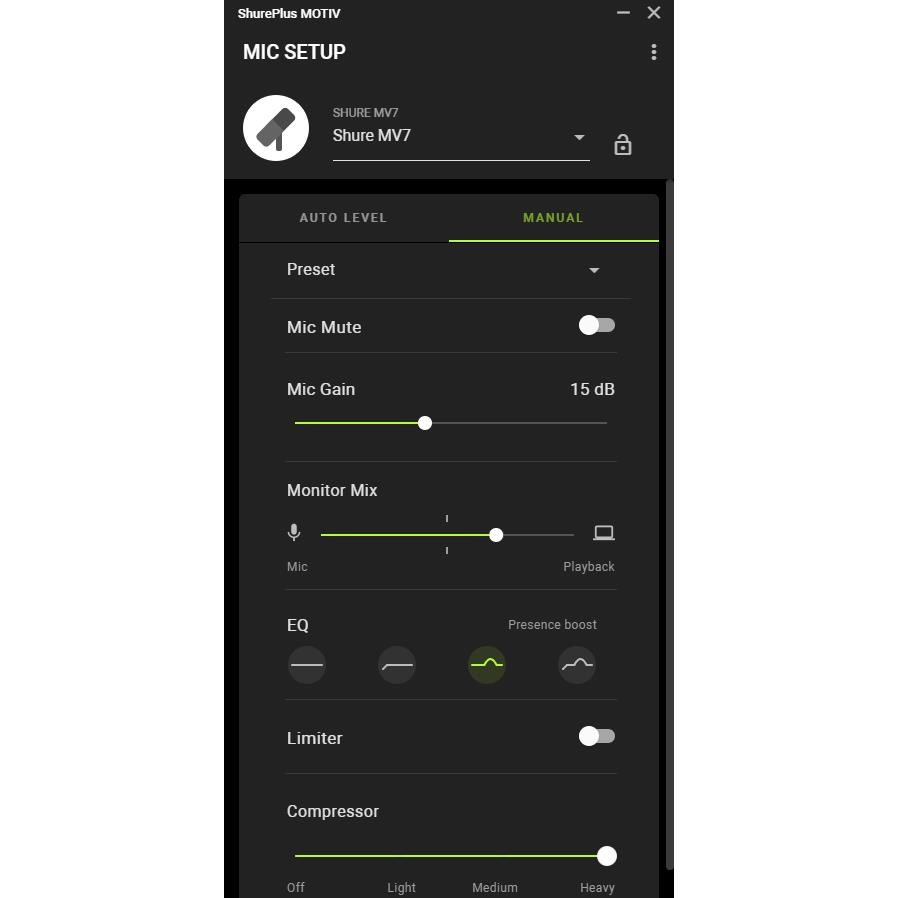

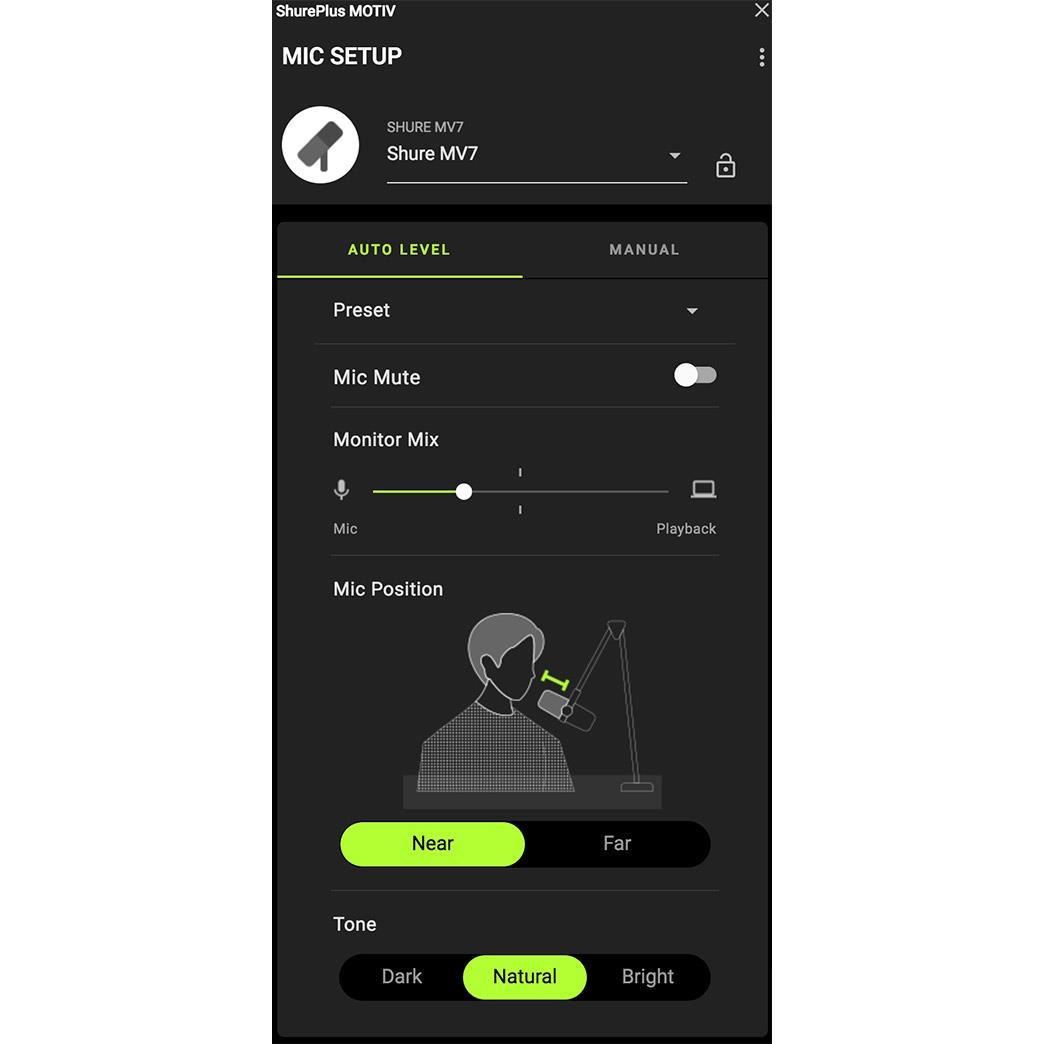

- Works with ShurePlus MOTIV app for even more control
Specifications
Microphone
Form Factor: Y adapter for boom arms and destop stands
Sound Field: Mono
Capsule: 1 x Dynamic
Polar Pattern: Unidirectional
Orientation: End Address
Circuitry: Solid-State
High-Pass Filter: None
On-Board Controls: Gain. Headphone Volume. Mic Mute
Windscreen: Built-In
Frequency Range: 50 Hz to 16 kHz
Maximum SPL Unidirectional: 132 dB SPL
Impedance Unidirectional: 314 Ohms at 1 kHz
Sensitivity Unidirectional: -55 dBV at 1 kHz
Unidirectional: -47 dBFS/Pa at 1 kHz

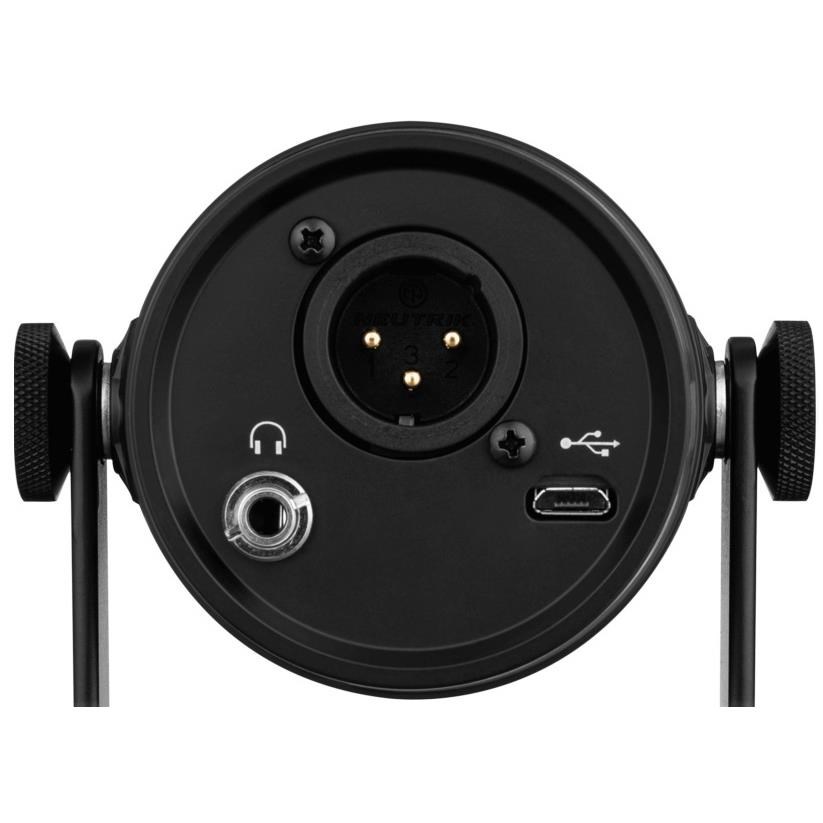

Output Connectors (Analog): 1 x XLR 3-Pin Male (on Mic)
Output Connectors (Digital): 1 x USB Type-B Female (on Mic)
Headphone Connector: 1 x 1/8' / 3.5 mm
Cable Length: 3.0 m (Straight)
Mounting 5/8'-27 Female
Construction Material Metal
Included Cables:
3m USB mini Type B to USB Type A included
3m USB mini Type B to USB Type C included
Microphone Dimensions: ø: 66.5 x L: 53.6 mm
Microphone with Mount Dimensions: H: 164 x W: 90.2 x L: 153.6 mm
Weight: 0.55 kg
Digital Specifications
A/D Conversion: 16 / 24-Bit
Sample Rate: 44.1 / 48 kHz
Digital Signal Processing: None
Operating System Support: Android. Windows. iOS. macOS/OS X
Mobile Device Compatibility:
iPad or Later
iPhone 6th Gen. or Later
iPod
RAM Requirement: 2 GB Minimum
Bus Power USB / Lightning
