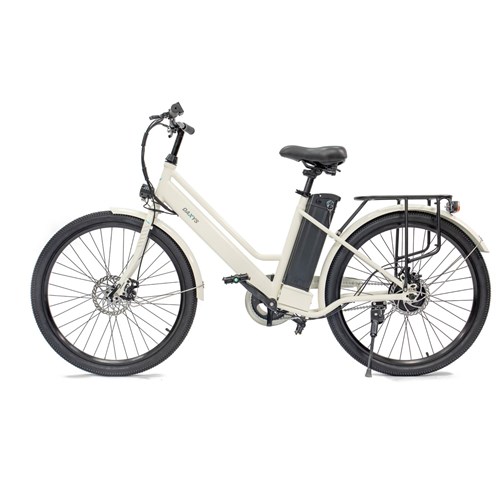

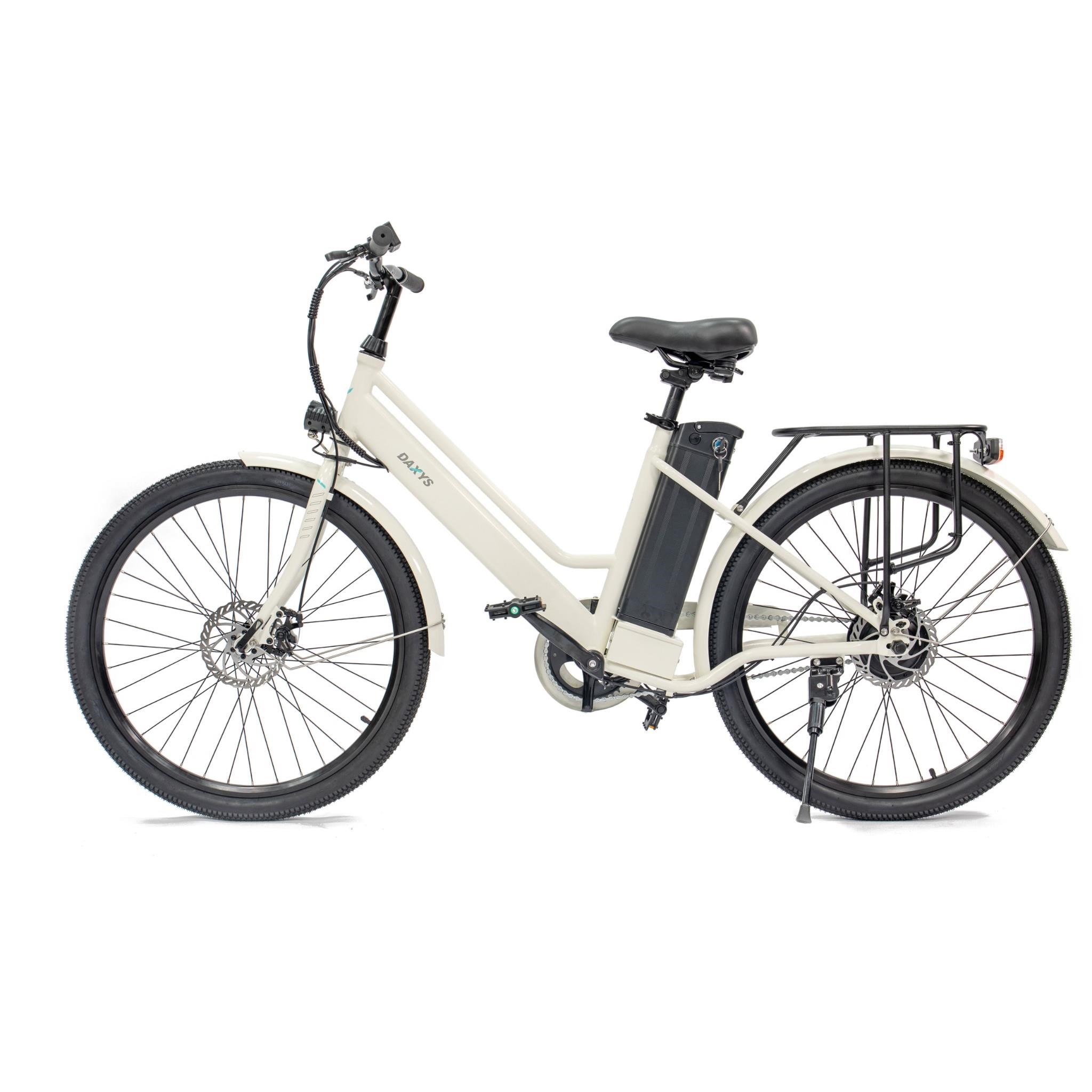

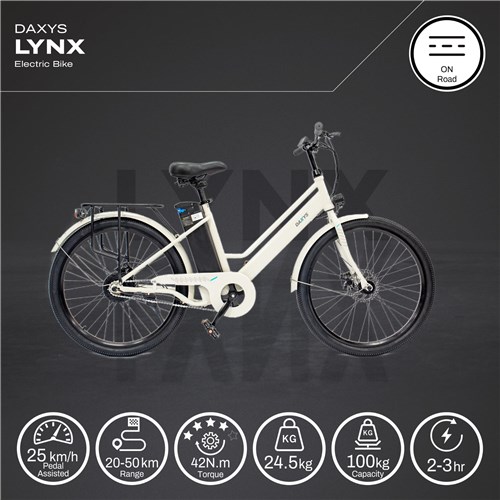

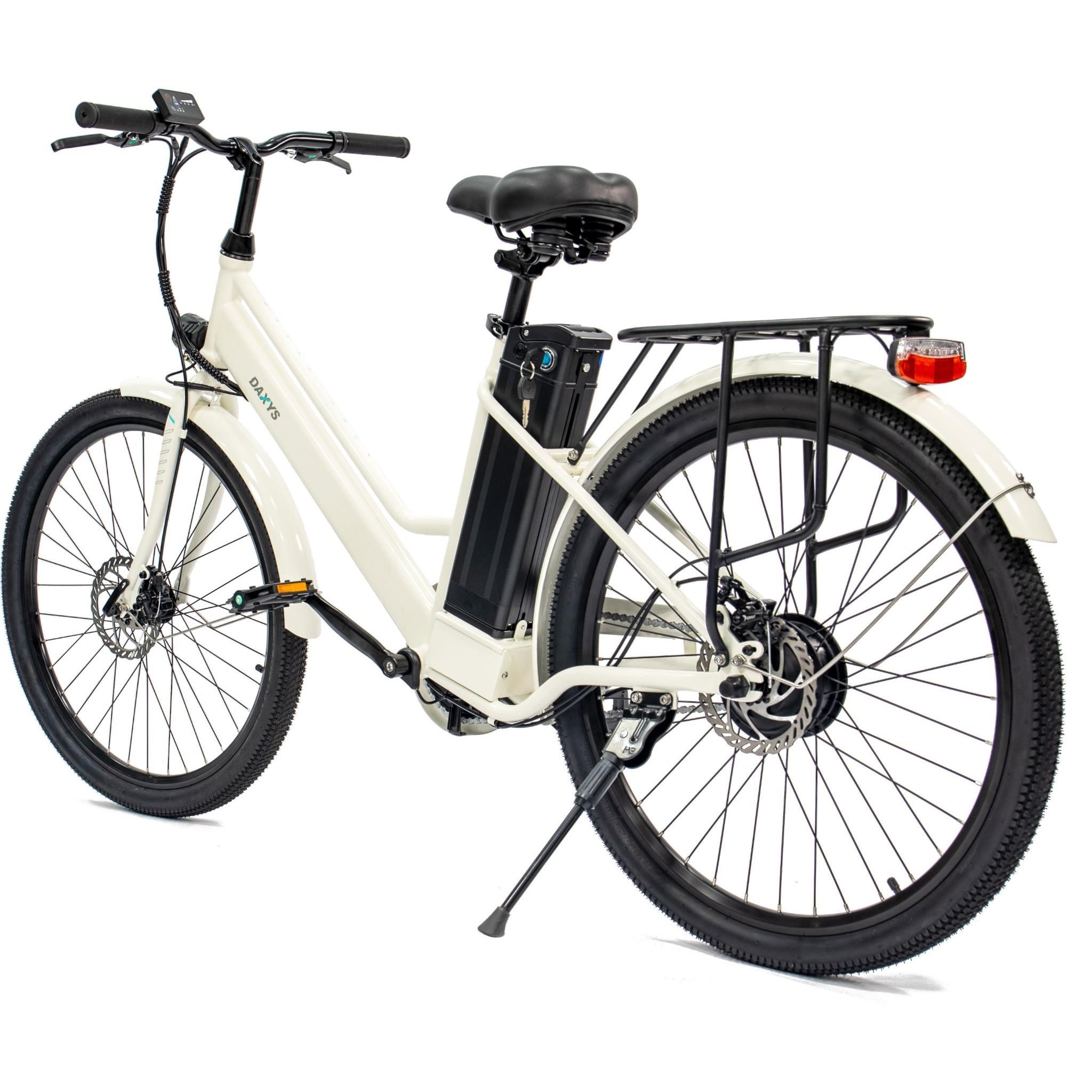

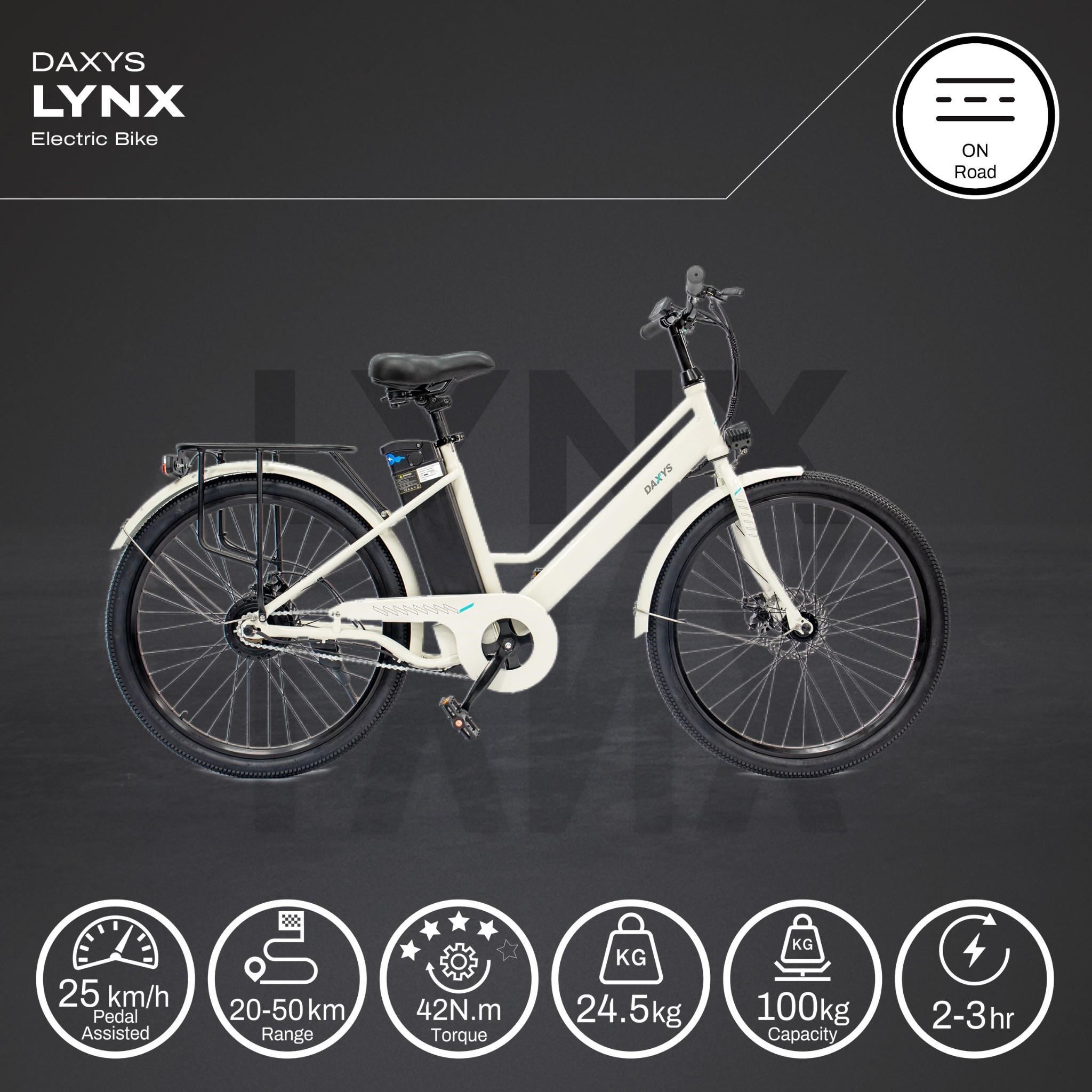

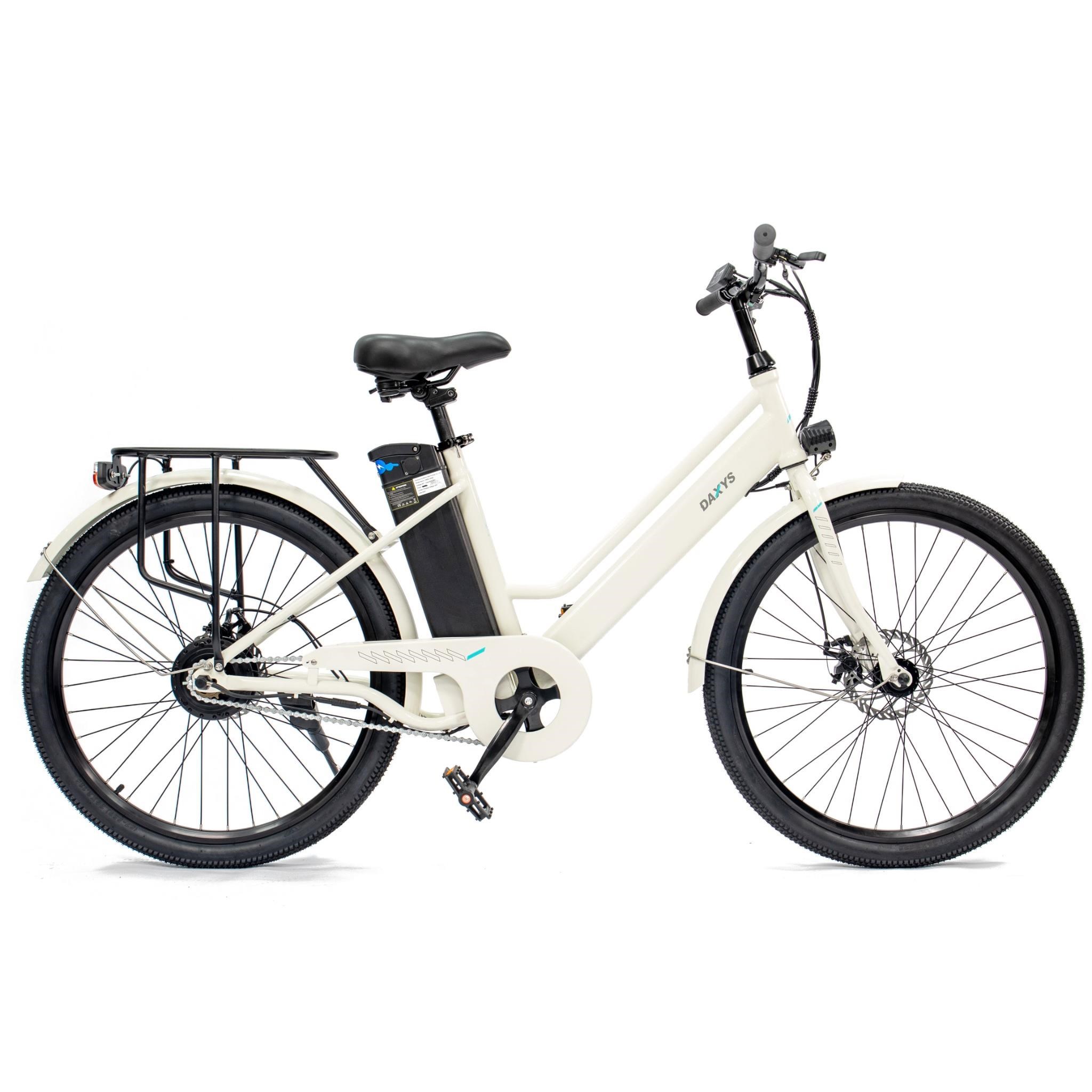

Daxys Lynx Step Through Electric Bike

Daxys Lynx Step Through Electric Bike

5572295
597786
Retail Grade Product
PLEASE NOTE: Things to know before you ride

Ride with caution and always wear a helmet and protective gear. Each state and territory in Australia have different rules and regulations for using your product, including where you can legally use such products and if you need to register them with your state’s road traffic authority. Any information provided by JB Hi-Fi is general in nature only and may not take account of your specific circumstances. It is the responsibility of each user to check their local laws before riding.
Login to view your pricing
  • Product Details
  • Notes 4
  • Technical Specifications
  • Warranty
  • Additional Documents
  • Promotion T&Cs
Description

Things to know before you ride
Ride with caution and always wear a helmet and protective gear. Each state and territory in Australia have different rules and regulations for using your product. including where you can legally use such products and if you need to register them with your state’s road traffic authority. Any information provided by JB Hi-Fi is general in nature only and may not take account of your specific circumstances. It is the responsibility of each user to check their local laws before riding.




The Daxys Lynx is a classic step-through ebike that uses a single gear. Designed for comfort and accessibility – for an enjoyable ride that will have you purring like a wild mountain Lynx.

Key Features

36V 250W Rear Motor with 42 Nm (Max)

Left Control Integrated with LED status indicator

Front fork with no suspension

20 to 50 km range

With pedal assistance of up to 25km/h

Single-speed gear system - focus on riding

Easy step-through design

Easy removable battery and easy to take out for recharging

Comes with mudguards and integrated rear racks as standard

*Some assembly required

Technical Specifications
Battery capacity (mAh) 5000
Battery charge life 20 - 50kms
Battery nominal voltage 36
Braking distance (metres) 3
Braking method Disc
Brand DAXYS
Charger input voltage 100-240V
Charger output current (amps) 2
Charger output power (watts) 84
Charger output voltage 42
E-bike drive type Hub-drive motor
E-bike features Step-through
Frame material Iron
IP rating IP65 for Left Controller
Max range approx (km) 50
Max weight bearing (kg) 100
Max. charging voltage 42
Motor max. power (watts) 350
Motor nominal power (watts) 250
Nominal energy (Wh) 180
On-road / Off-road On-road
Operating temperature range (C) -10 to 50
Packaged Depth (mm) 770
Packaged Height (mm) 1540
Packaged Weight (kg) 35.4
Packaged Width (mm) 240
Product Depth (mm) 1040
Product Height (mm) 1840
Product Weight (kg) 24.5
Product Width (mm) 620
Recommended rider age 18 years and over
Recommended rider height (cm) 175-190
Rideables device type Electric bikes
Riding modes Pedal assist mode (PAS) 0-3 walk assist mode
Storage temperature range (C) -10 to 50
Time to full charge 2-3 hours
Top speed (km/h) 25
Torque (N m) 42
Traversable terrain Sealed surfaces- asphalt & concrete roads & footpaths
Tyre size (inches) 26
Tyre type Inner tube
Water Resistant true
Waterproof true
Colour White
Warranty
  • Manufacturers Warranty: 1 Year
